HIGH TEMP 3D PRINTING
Formlabs High Temp is a stiff, thermally stable SLA resin with a heat deflection temperature of 238°C at 0.45 MPa — the highest in our range. Printed on our Form 4, it is built for parts that see heat: injection and thermoforming mould inserts, hot-air and fluid-flow channels, and thermal-test fixtures. It captures fine detail with a smooth finish, and a thermal post-cure brings it to full temperature resistance. A special-order engineering resin, quotable instantly online.
WHEN HIGH TEMP IS THE RIGHT MATERIAL

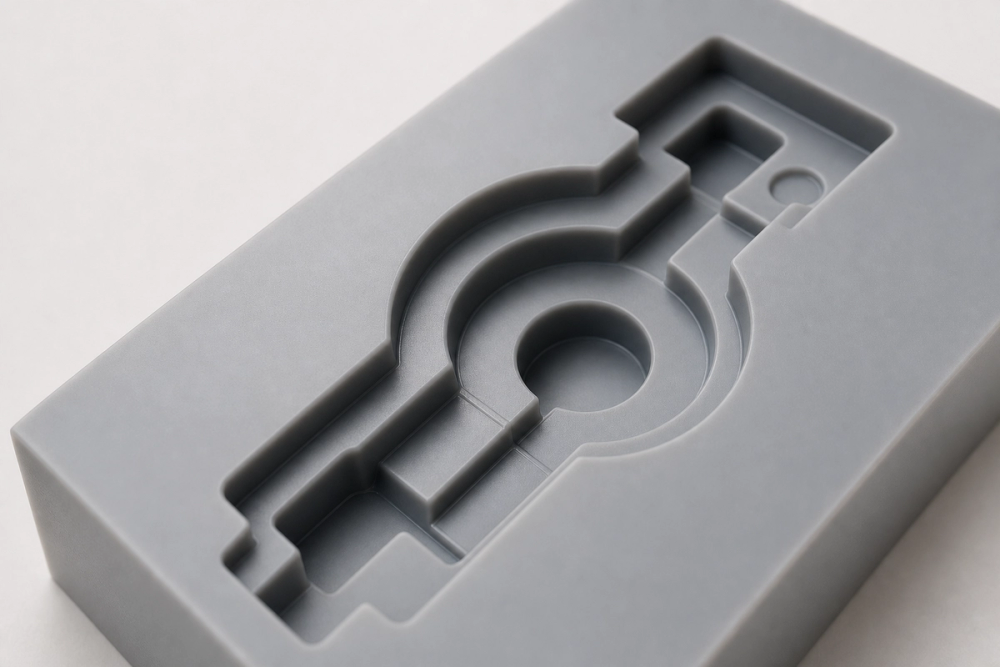

- Moulds and tooling — injection, thermoforming and casting inserts that must hold shape under heat and pressure for short runs.
- Hot-air and fluid channels — ducting, manifolds and flow fixtures that see elevated temperatures.
- Thermal test parts — jigs and fixtures for heat testing, or parts near hot equipment where standard resin would soften.
- Fine-detail parts that also need heat resistance — High Temp keeps the smooth SLA finish while surviving 238°C.
WHEN HIGH TEMP IS THE WRONG MATERIAL
- Impact or load-bearing parts — like most high-HDT resins it is stiff and brittle. Use Tough 1500 or Tough 2000 for parts that get handled or flexed.
- Flexible parts — this is a rigid resin. For rubber-like behaviour use Flexible 80A or Silicone 40A.
- Large solid blocks — thick sections are best hollowed with drain holes to control cost and internal stress.
- Everyday visual prototypes — the heat resistance is wasted; Standard resin is cheaper and stocked.
TECHNICAL DATA
| Property | Value | Notes |
|---|---|---|
| Heat deflection temp | 238°C @ 0.45 MPa | Highest HDT in the Formlabs range |
| Material behaviour | Stiff, glassy, brittle | Rigid — not for impact or flexing parts |
| Surface finish | Smooth, fine detail | Standard SLA surface quality |
| Layer height | 0.1mm | Formlabs-validated on the Form 4 |
| Build volume | 200×125×210mm | Formlabs Form 4 |
| Post-processing | Wash + thermal post-cure | Thermal post-cure develops full heat resistance |
| Colour | Amber | As supplied |
PRICING
Quoted instantly online. High Temp is a special-order engineering resin — we order it in for your job, and the quote tool shows the exact surcharge and any minimum before you pay anything.
GET YOUR HIGH TEMP QUOTE
Upload your STL, STEP, or mesh file to the quote tool. Price returns in seconds. Card, invoice (trade accounts) and bank-transfer payment accepted. High Temp is a special-order resin — we bring it in for your job, so allow a little longer than a stocked material. The quote shows any surcharge and minimum before you pay.
